Forensic Engineering Files: Cherry Hill Basement—When Carbon Fiber and Interior Drains Go Wrong
Penn Valley Engineering is often retained for its forensic engineering expert witness services. When a repair fails to solve the real problem—or worse, creates new ones—we can help attorneys and homeowners navigate complex structural disputes. The following case, from Cherry Hill, New Jersey, is one example of when carbon fiber and interior drains go wrong. It illustrates how seemingly straightforward basement “fixes” can miss critical engineering steps. This can lead to ongoing structural movement, moisture intrusion, and costly do-overs.
Cherry Hill Basement Forensic Engineering
This entry in our Forensic Engineering Files details a real-world investigation that not only identified subtle errors but also pinpointed responsibility. Based on a formal report and site observations, a resolution was reached. This demonstrates how forensic engineering can turn uncertainty into actionable insights for both legal teams and affected property owners.
The residence in this case was a typical two-story wood-frame home built in 1988, located in Cherry Hill, NJ. It featured a partially finished basement with concrete masonry unit (CMU) foundation walls consisting of 12 courses of 12-inch block. Like many properties in the region, it faced water infiltration issues starting around 2008. This is a common problem in New Jersey’s variable soil and weather conditions.
The homeowners were contacted by a contractor specializing in basement waterproofing. Initial proposals in 2008 were declined due to cost. The contractor revisited in April 2011 and convinced the clients to sign an agreement dated May 3, 2011. The contract covered an interior sub-slab perimeter drainage system and promised to obtain all necessary permits and inspections. Work commenced on May 27, 2011, and was completed shortly after. However, a permit for the drainage wasn’t obtained until June 3, after much of the installation was done.
Carbon Fiber Foundation Reinforcement System
On the first day of work, the contractor advised the homeowners that the southeast corner walls were showing signs of deterioration and bowing due to exterior water pressure. An addendum was created, upselling a Rhino Carbon Fiber foundation reinforcement system. This was installed in July 2011 without a permit, engineering specifications, or inspection by the local construction official.
PVE’s review of the township’s file revealed permits only for the drainage system, with explicit instructions for required inspections that the contractor ignored. Final payment was collected before inspections. When the township finally inspected on October 25, 2013, it was a “blind inspection.” The system was already covered in concrete, making it impossible to verify compliance. This represented an egregious violation of New Jersey regulations, codes, and standards.
A Forensic Engineer’s Role
Penn Valley Engineering’s involvement began when an attorney engaged us to evaluate both systems (carbon fiber and interior drains). Our forensic engineering services would:
- determine compliance with applicable codes and manufacturer instructions.
- opine on causation and remedy.
- include document review—including industry materials, manufacturer specs, the 2009 International Building Code (IBC), International Residential Code (IRC), New Jersey Uniform Construction Code, and relevant statutes.
- perform a detailed site visit on November 26, 2013, and an invasive inspection.
NOTE: Invasive work is essential in forensic engineering practice. Concealed conditions cannot be assessed through finished surfaces, and the performance of drainage assemblies rises or falls on details that aren’t visible once concrete is replaced.
Uncovering Flaws in the Carbon Fiber Reinforcement

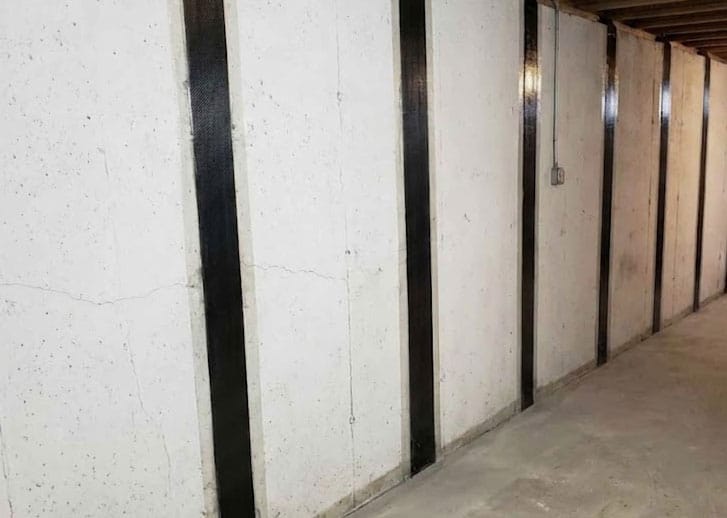

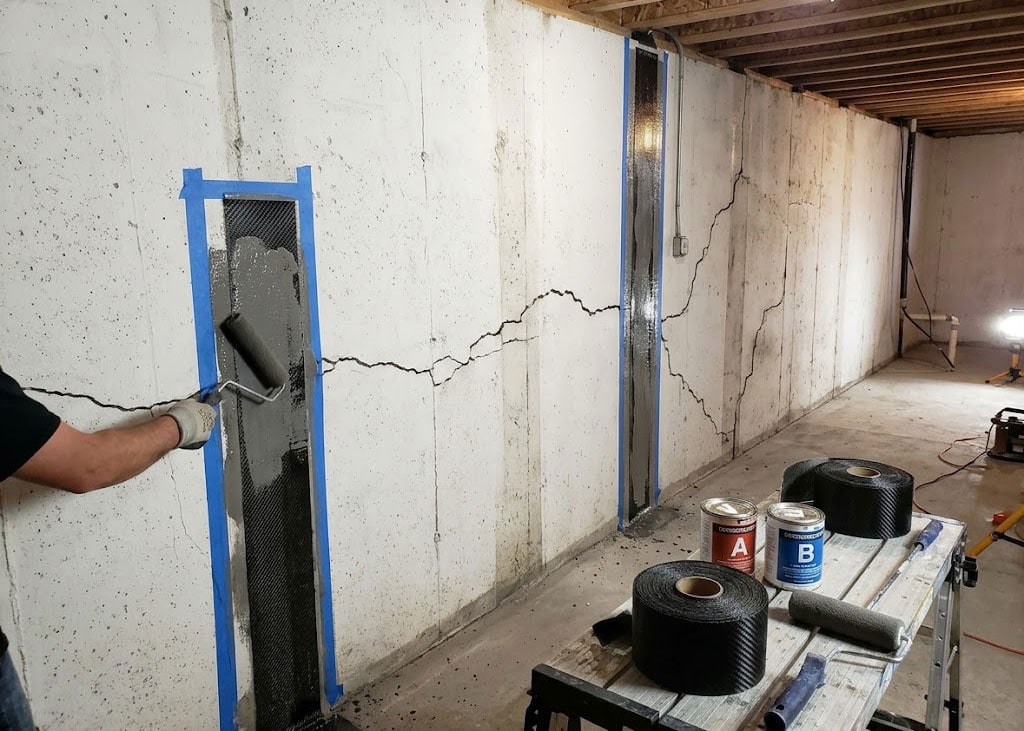

The carbon-fiber reinforcement was comprised of six vertical strips applied to the interior face of the front and left-side foundation walls. Findings told a story of incomplete and unreliable installation. These systems are sometimes used to restrain further inward movement of basement walls that have cracked or bowed. Consequently, they are not designed to “repair” the walls or address underlying causes like hydrostatic pressure or poor grading. They require strict adherence to manufacturer instructions: grinding the wall to “bare block” for adhesion, sill-plate brackets at the top, and carbon-fiber pins at the base.
Penn Valley Engineering’s inspection concluded that the surface preparation appeared inconsistent. Only some sill-plate brackets were installed, and the sill plate itself lacked anchor bolts. This omission defeats the load path the brackets depend upon, rendering the setup structurally unstable. Furthermore, the pins were too short and improperly installed, making it impossible to retrofit without full removal. Because these anchorage components are integral and cannot be effectively added once cured, the installation was, in our professional opinion as a forensic structural engineer, incomplete, faulty, and not in accordance with manufacturer guidelines. Absent engineering oversight, the system failed to provide true lateral capacity, especially in areas with significant wall deterioration and cracking below a foundation window lacking a sill plate.
Construction Code and Statutory Demands
Under New Jersey’s Uniform Construction Code (N.J.A.C. 5:23-6.3), this work constitutes rehabilitation and alteration and requires permits before commencement (N.J.A.C. 5:23-2.14(a)). Moreover, evaluating damaged walls, determining causes, and specifying repairs falls squarely within the statutory definition of the “practice of engineering” (N.J.S.A. 45:8-28(b)). This demands licensed professional involvement for site assessments, load calculations, stress analyses, and construction documents. The contractor’s failure to engage an engineer violated N.J.S.A. 45:8-27, constituting unauthorized practice of engineering.
Deficiencies in the Interior Sub-Slab Drainage System

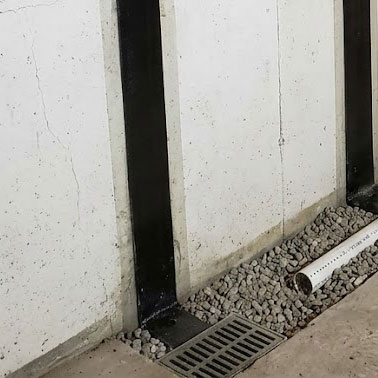

In addition to the carbon fiber reinforcement investigation, forensics services for the interior drains and sub-slab drainage system were also ordered. The drainage system involved 4-inch perforated ADS piping along the perimeter. It connected two sump pumps discharging via PVC through the walls. To inspect it, Penn Valley Engineering coordinated with Keystone Foundation Service, Inc., for two test pits. These small excavations would expose the system.
Test Pit #1 on the left side wall revealed:
- a thin concrete patch (1.5-2 inches versus the original 4-inch slab),
- scant crushed stone (about 2.5 inches above the pipe, none below),
- no filter fabric, and no vapor barrier.
- The pipe sat too close to the footing (16 inches) and 7 inches below the slab top.
- A plastic drain board created a continuous gap at the slab edge,
- and weep holes were small, clogged, and not at every masonry cell.
Test Pit #2 at the rear showed identical conditions, with silt in the sump pits indicating fines migration—consistent with the missing fabric.
Violations Revealed
These deviations violated IBC 2009 Section 1805.4.2. This code requires 2 inches of stone below and 6 inches above the pipe, plus a filter membrane and a 12-inch minimum distance from the footing. Also in violation was Section 1804.1. This code mandates underpinning during slab removal. The permit detail specified a 3.5-inch patch, a 3.5-inch patch, a vapor barrier, and fabric. None were followed. The thin patch diminished the slab’s diaphragm action, compromising lateral wall stability. Had inspections been requested, these issues could have been corrected inexpensively before concealment.
Causation, Remedy, and Broader Lessons
From a causation standpoint, the systems did not address root conditions driving distress—hydrostatic pressure, site drainage, and boundary issues at the wall’s top and bottom. The carbon fiber became little more than a cosmetic restraint, while the drain was prone to clogging and undermining. Pair these with code violations, and the walls remained vulnerable to continued lateral movement, deterioration, and water intrusion.
The remedy is inconvenient but clear: Remove and reinstall the drainage to the current code. This includes proper trench dimensions, stone bedding, filter fabric, vapor barrier, and a compliant slab patch—all performed under engineering supervision and with permits. Leave the carbon fiber to avoid removal damage, but supplement with an engineered tie-back anchor system. Penn Valley Engineering provided this homeowner with a specifically designed system addressing sill-plate anchorage for the window areas. Unfortunately, costs would likely match or exceed the original, plus extras like engineering and debris fees.
Defensible Remedies When Carbon Fiber and Interior Drains Go Wrong
- Repairs not tailored to actual conditions disguise symptoms;
- inspection sequencing catches errors early;
- and a forensic engineering expert witness ties defects to codes, separates workmanship from design issues, and provides defensible remedies.
In this Cherry Hill matter, PVE’s forensic engineering role documented failures, explained causation, and mapped a path to compliance—essential for negotiation or trial. We are accepted as engineering experts in the New Jersey Superior Court and the Pennsylvania courts. We’ve assisted in numerous cases across NJ, Pennsylvania, and Florida.
